Universal or Standard Balance Control box for PianoDisc iQ Systems.
Wireless transfer of music to airport express under piano
Click here... Learn how to set up your piano for wireless operation.
This is how to wire the Standard Balance Control Box.
When using the balance control box, don't use the speaker outputs on the iq control box. Learn and level the piano like you always have, and then add the box. If you want to set a maximum level at which piano/audio will play, use a small 1/8" flat head or phillips screwdriver and adjust the limit pots on the side of the box.

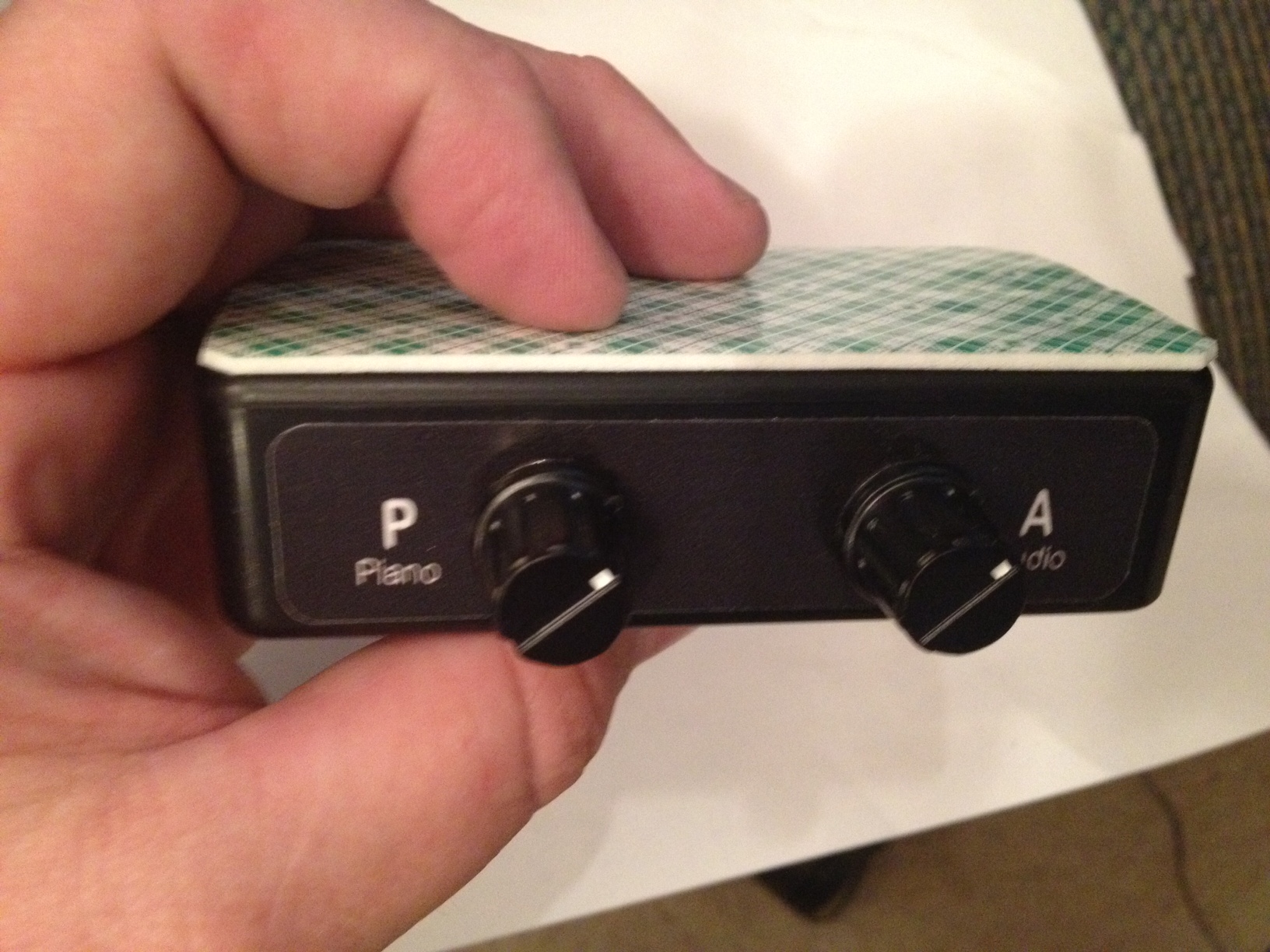

These are the Limit pots for piano and audio.

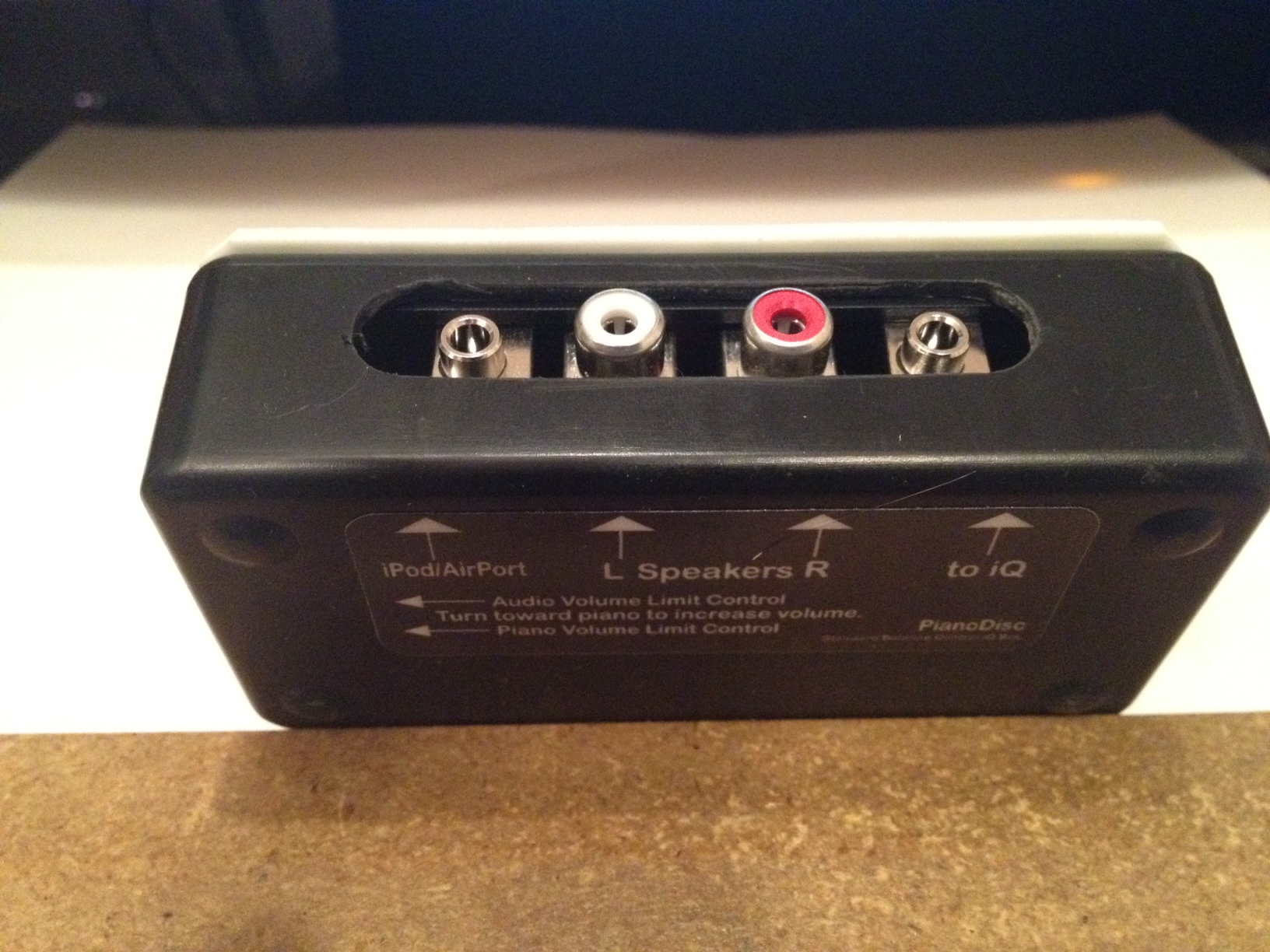

Plug your audio source here and bypass airport express if you don't want to make the piano wireless.
