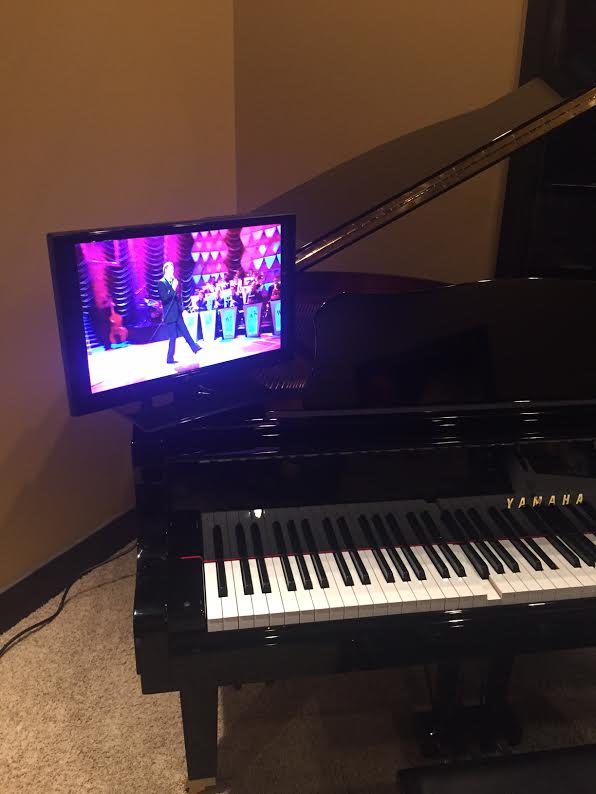

Micca in action...playing Michael Buble...
Dual source with Micca mounted next to it. Easily switch between AirPort and Micca

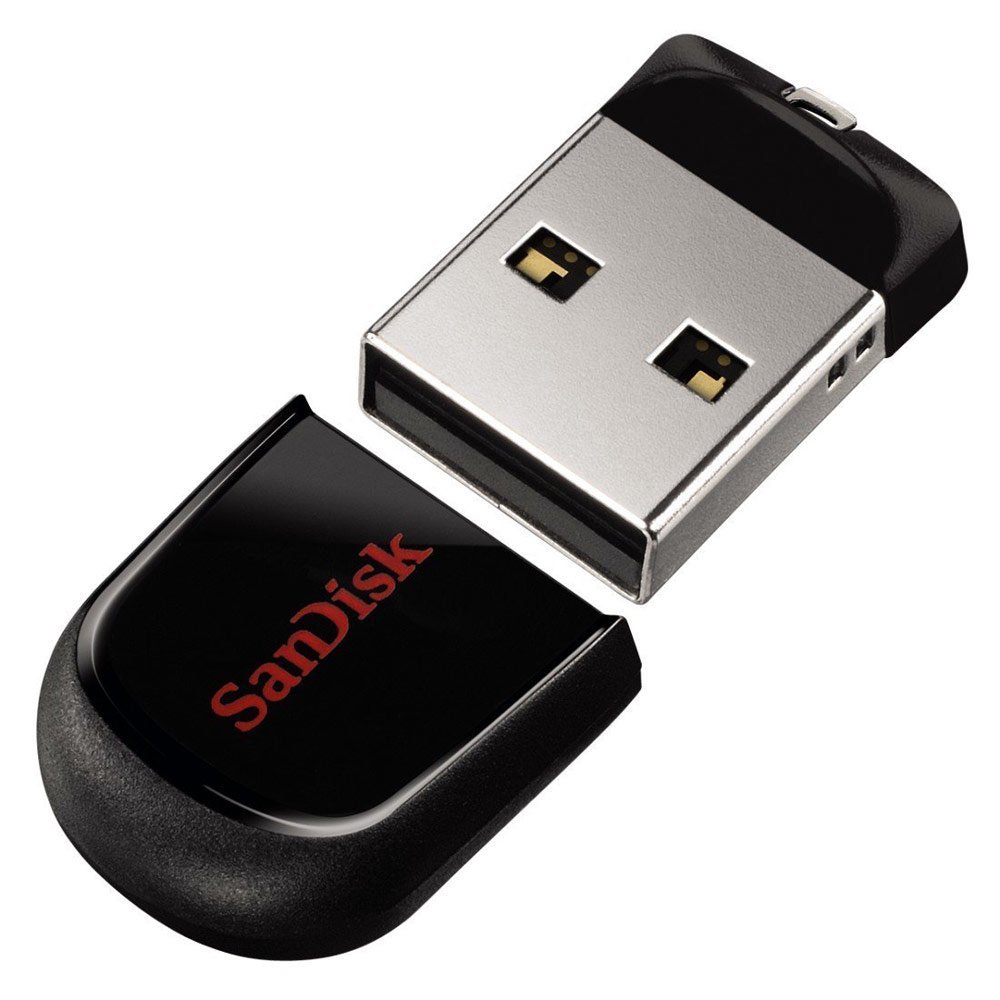

32 gig USB Thumb Drive...store all of your music and movies here.

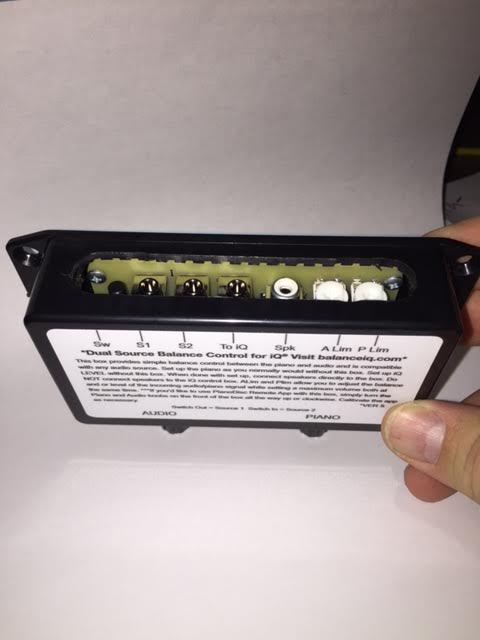

Switch between AirPort and Micca with this box.
32 gig usb thumb drive. Load all of your PianoDisc music and movies here. Click on pic. Purchase from Amazon. $15.12
Infra-red remote for Micca player. Must point at front of micca to work. Line of sight operation only.
Infa-red reciever for Remote control.
Switch to 2Ch (switch in middle position)
Double click to edit
HDMI to TV. Turn TV's volume all the way down.

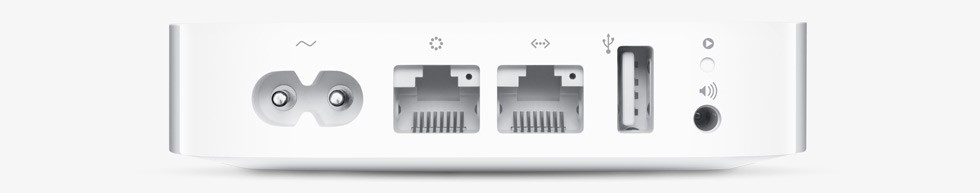

AirPort Express Main input to Dual source Box.
Switch IN for Source 2. Switch OUT for Source 1.
So, push switch in for Media Player.
So, push switch in for Media Player.
Front of Micca Media Player Click on pick. Purchase from Amazon. $36.95

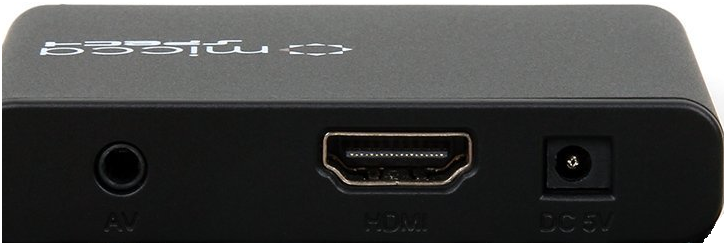

Back of Micca Media Player
HDMI Converter strips piano and audio signal from HDMI cable. After stripping piano and audio, run them to Balance Box by way of one RCA to 1/8"cable.

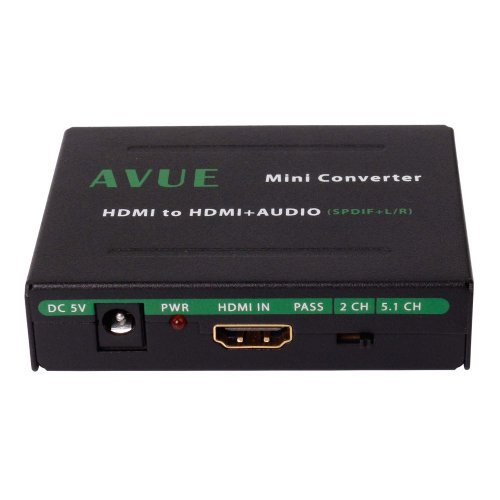

Back of HDMI converter. Remember, this pulls the piano and audio signal out of the HDMI cable.
Stick HDMI converter towards the left rim of the piano. On newer iQ systems, the power supply works fine as a place to mount the converter.
Run one HDMI cable to TV and you're done. Make sure to turn down TV's volume.

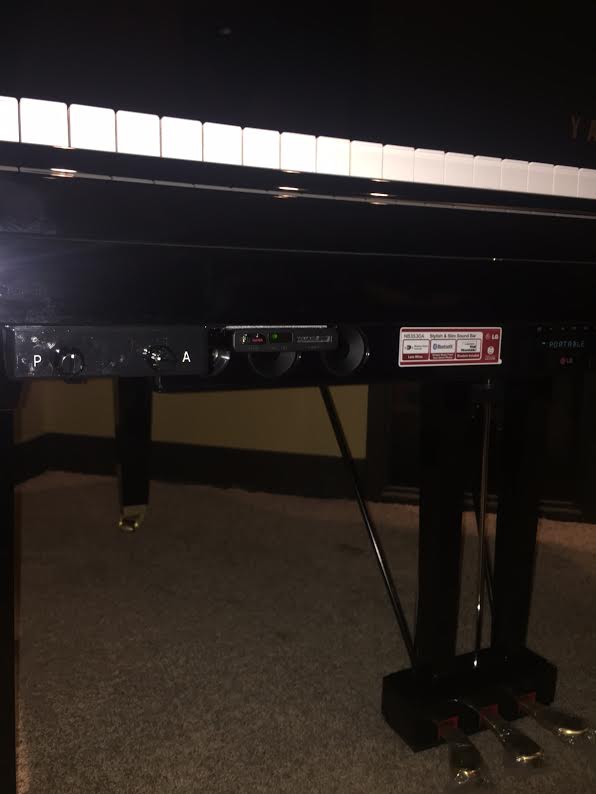

Once it's set up, all you have to do is run one HDMI to any TV.
Very cool way to have your piano set up with all of your music and movies on board ready to go. Once this is all set up, you're piano will only need one HDMI cable to go to any practically any TV. (How to transmit to TV completely wirlessly covered below.) As a courtesty (you're welcome haha) I have included links on every single thing that you need here. The only thing that you'll need from me is the dual source box.
Micca Media Player
Dual Source Balance Box

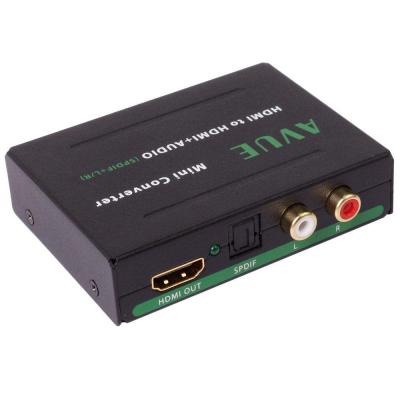

This is the back of the HDMI converter. Run the white and red rca to 1/8" to the source 2 input on the dual source balance box.
You're looking at the left edge of the piano. I mounted the HDMI converter to the power supply which works just fine.

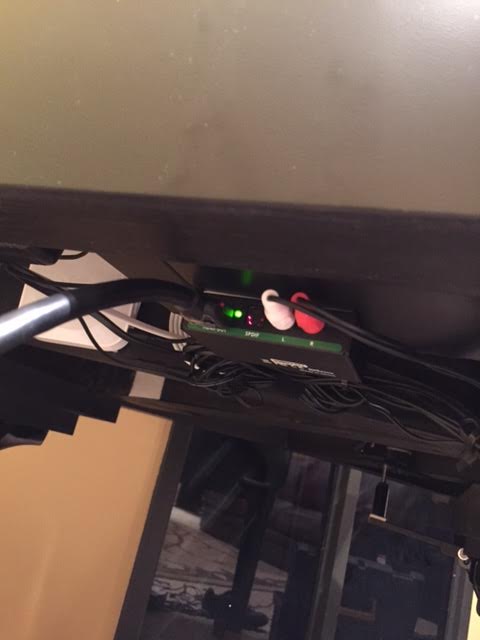

HDMI converter box mounted on power supply on left side of piano. Once done, you only need one HDMI cable to run to your TV.

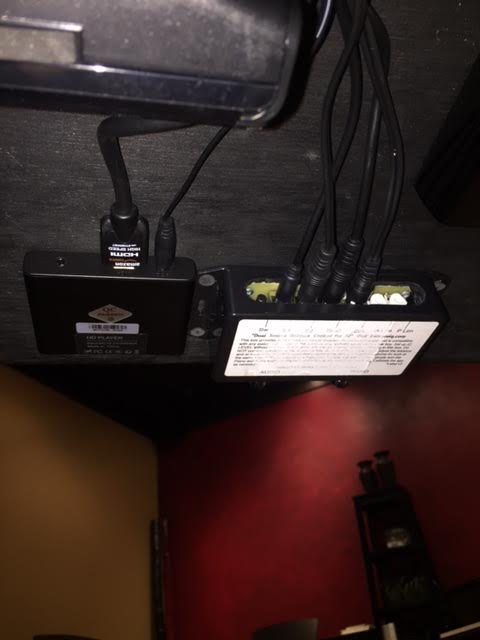

Dual source balance box here.
Micca Media Player here.

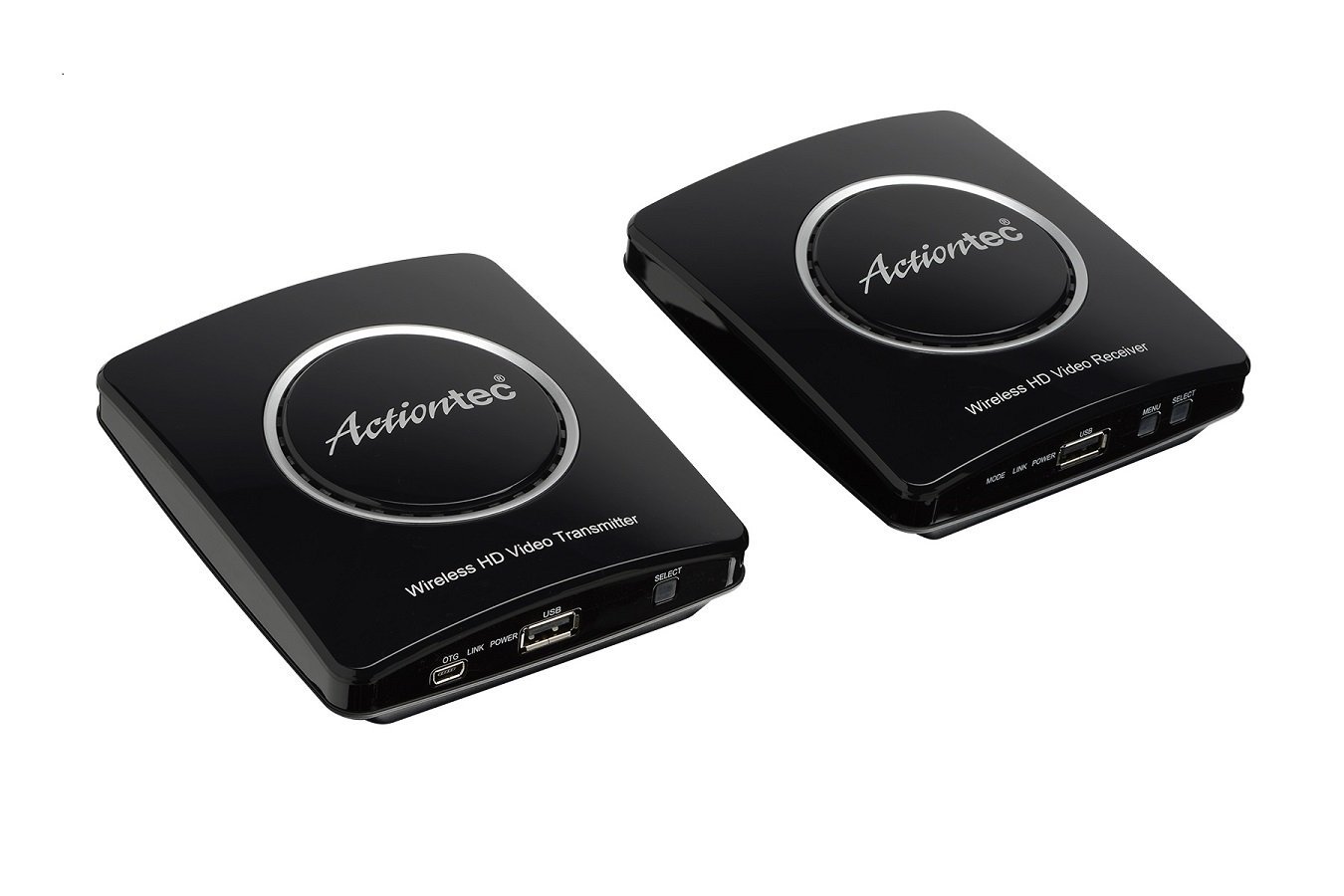

TO TRANSMIT FROM YOUR PIANO TO YOUR TV ALL WIRLESSLY USE THIS PRODUCT. IT'S A BIT PRICEY AS IN ABOUT $170 PLUS SHIPPING. INSTALL THE TRANSMITTER UNDER THE PIANO. PLACE THE RECEIVER NEXT TO OR BY YOUR TV, OR EVEN VELCRO IT TO THE BACK BUY A 3 FOOT HDMI CABLE. CLICK ON THE PIC TO LEARN MORE ABOUT IT. PURCHASE FROM AMAZON.

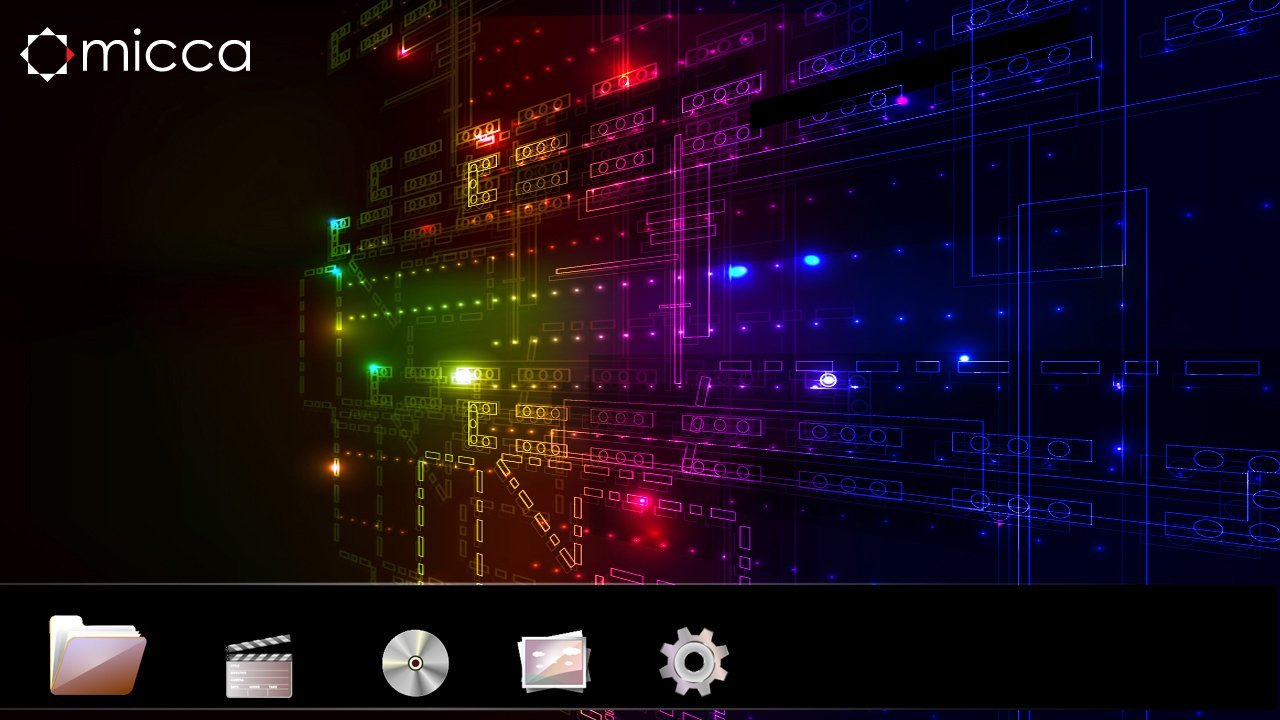

This is the actual micca interface that you'll see on your TV.

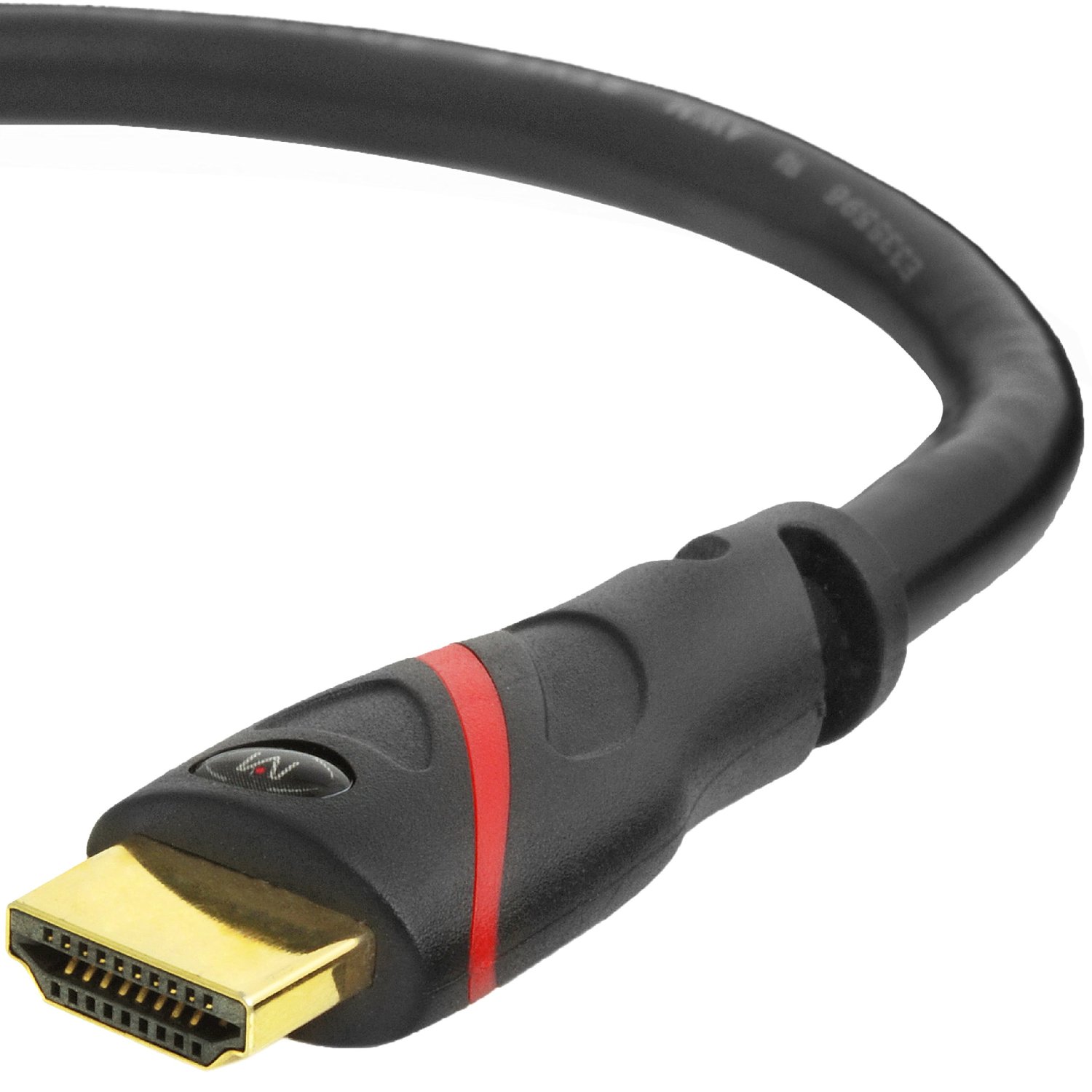

6 foot HDMI cable link included. Click on pic. Available at amazon. Cost: $8.99
25 foot cable from Amazon. Link included click on pic.
Price: $13.99
Price: $13.99
Purchase from Amazon. Link included. Click on pic. $25.90

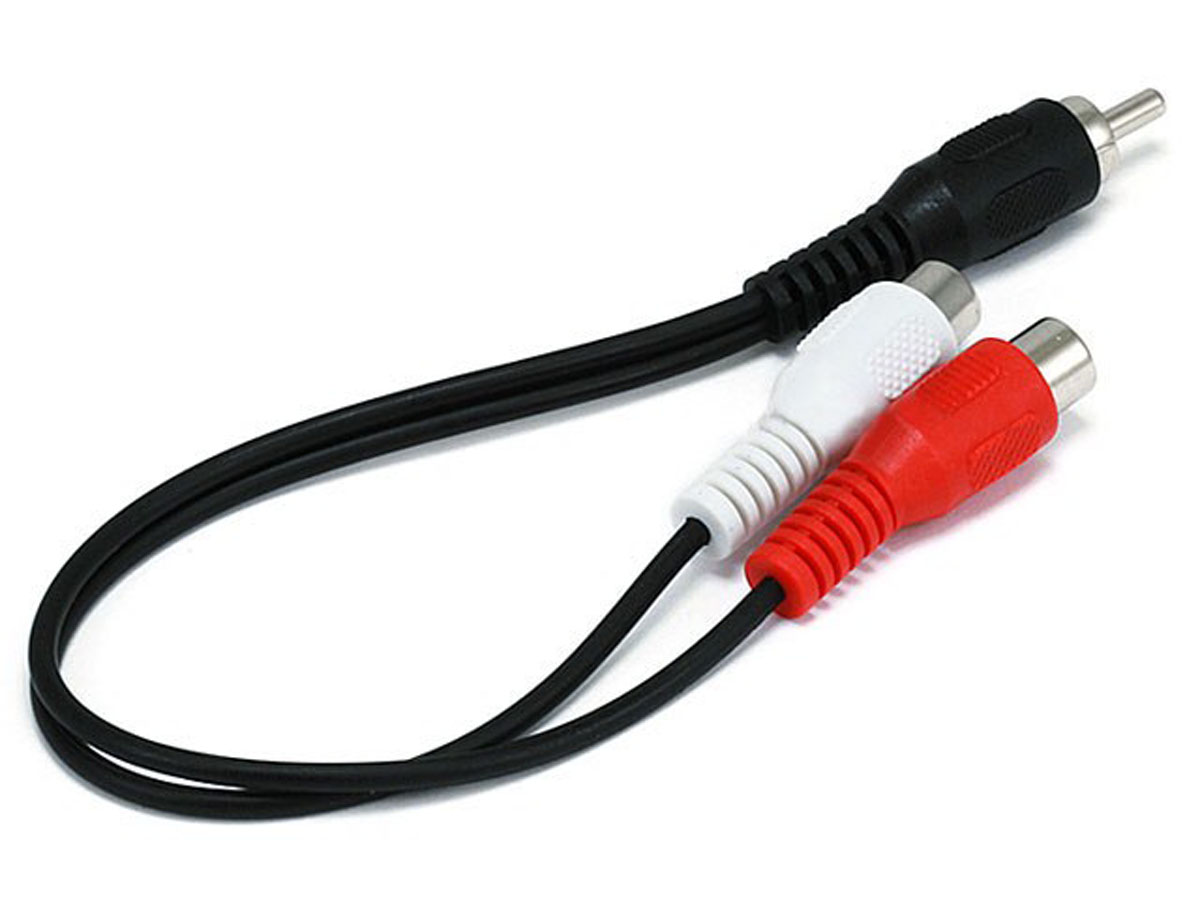

Purchase from Monoprice.com $.57 Click on pic.

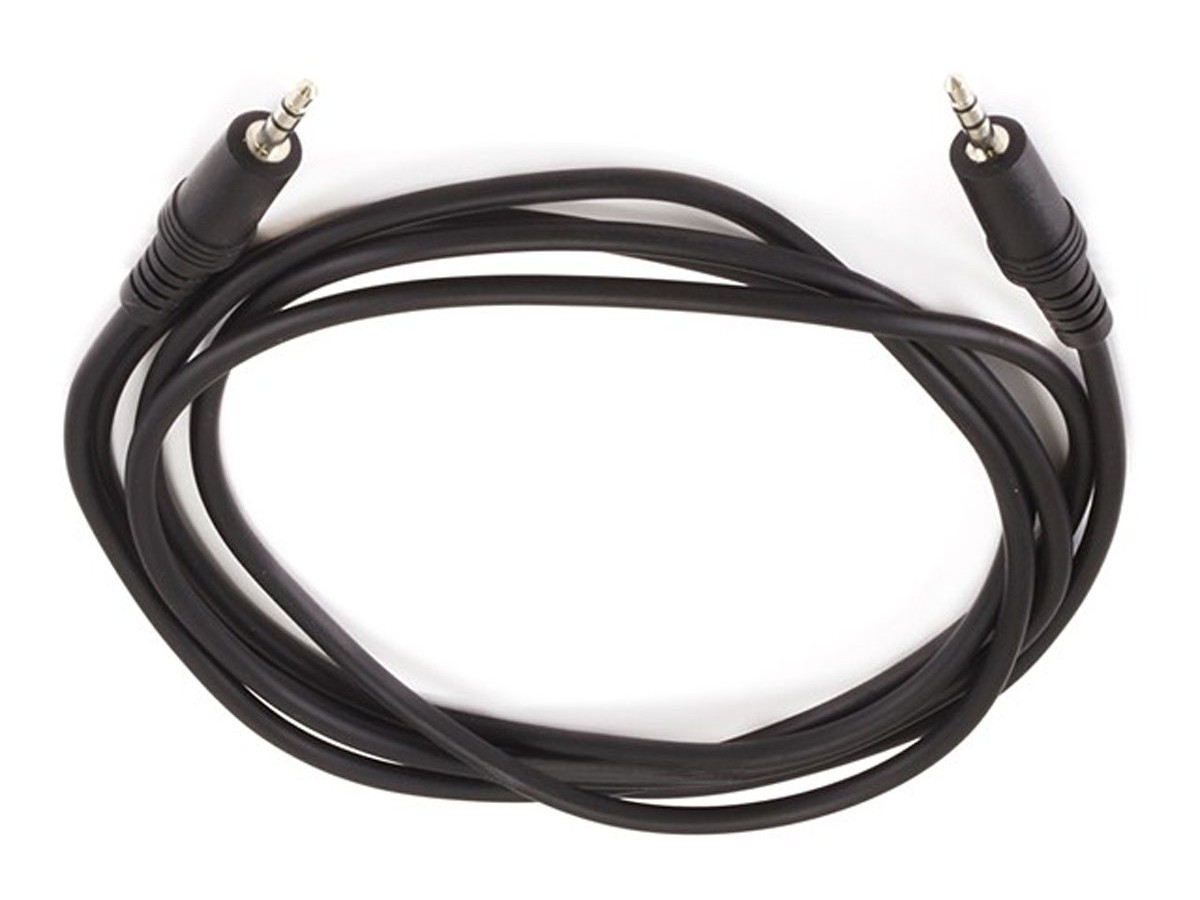

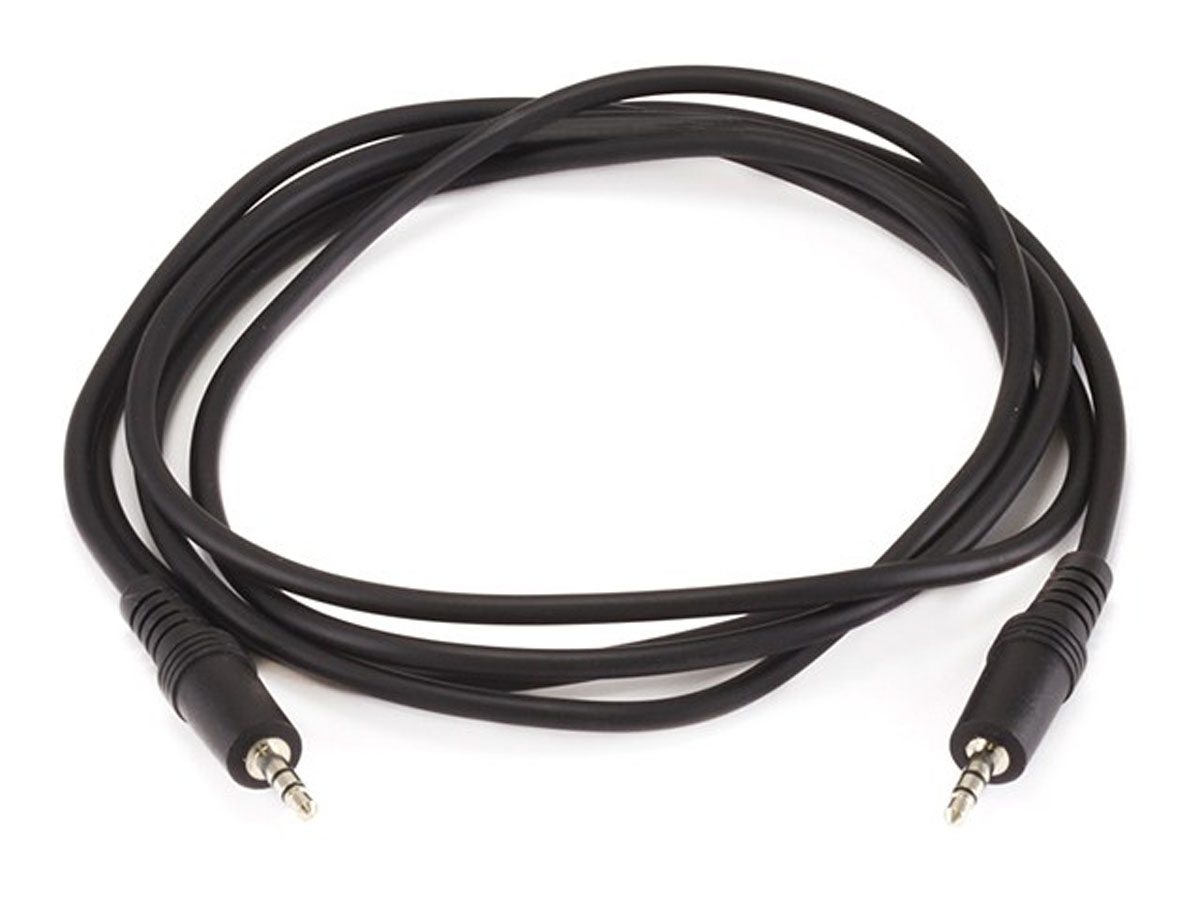

Get from Monoprice.com Nice cable really cheap. $.88
Get from Monoprice.com Nice cable really cheap. $.88
Get a dual source box from me. Click on either pic. Cost $85 free shipping. Lifetime warranty.
SUMMARY OF WHAT YOU'LL NEED:
1. MICCA MEDIA PLAYER $36.95
2. HDMI CONVERTER $25.90
3. 3 FOOT HDMI HDMI CABLE $5.09
4. 15-25 FOOT HDMI CABLE $11.49
5. DUAL SOURCE BALANCE CONTROL BOX $85
6. 32 GIG USB FLASH DRIVE $15.12
7. 1/8" TO RCA CABLE $.79
8. 1/8" TO 1/8" MALE CABLE $.88
9. Double-sided sticky tape $2.77
10 2 AAA Batteries for Micca Remote $2.81
Grand TOTAL: $186.99
Shipping... Let's say 15 so you're into it $200
MAKE YOUR LIFE EASIER AND HAVE ME PUT ALL OF THIS TOGETHER FOR YOU AND SHIP IT ALL FOR AN ADDITIONAL $50
Total if I put it together and ship it: $250.00
1. MICCA MEDIA PLAYER $36.95
2. HDMI CONVERTER $25.90
3. 3 FOOT HDMI HDMI CABLE $5.09
4. 15-25 FOOT HDMI CABLE $11.49
5. DUAL SOURCE BALANCE CONTROL BOX $85
6. 32 GIG USB FLASH DRIVE $15.12
7. 1/8" TO RCA CABLE $.79
8. 1/8" TO 1/8" MALE CABLE $.88
9. Double-sided sticky tape $2.77
10 2 AAA Batteries for Micca Remote $2.81
Grand TOTAL: $186.99
Shipping... Let's say 15 so you're into it $200
MAKE YOUR LIFE EASIER AND HAVE ME PUT ALL OF THIS TOGETHER FOR YOU AND SHIP IT ALL FOR AN ADDITIONAL $50
Total if I put it together and ship it: $250.00

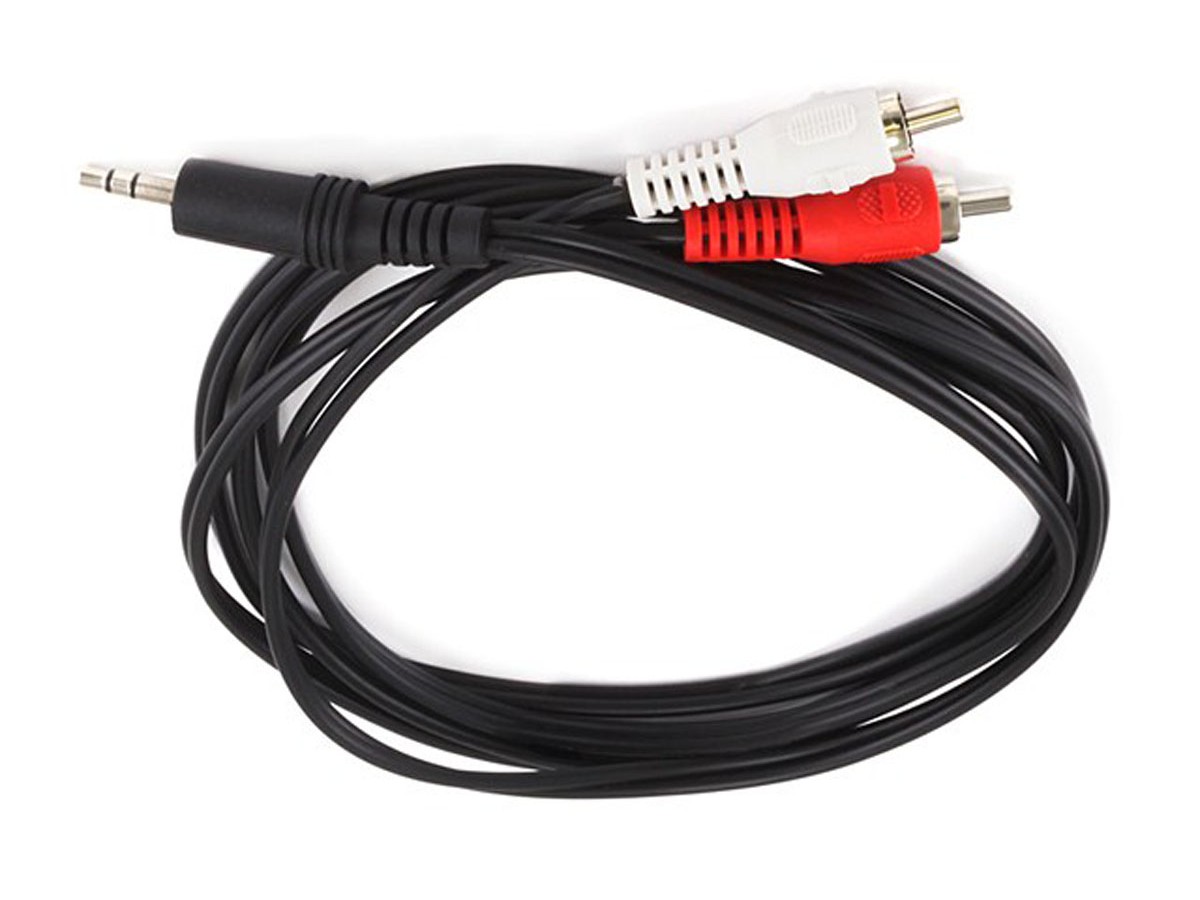

Click on pic $.79 from Monoprice.com

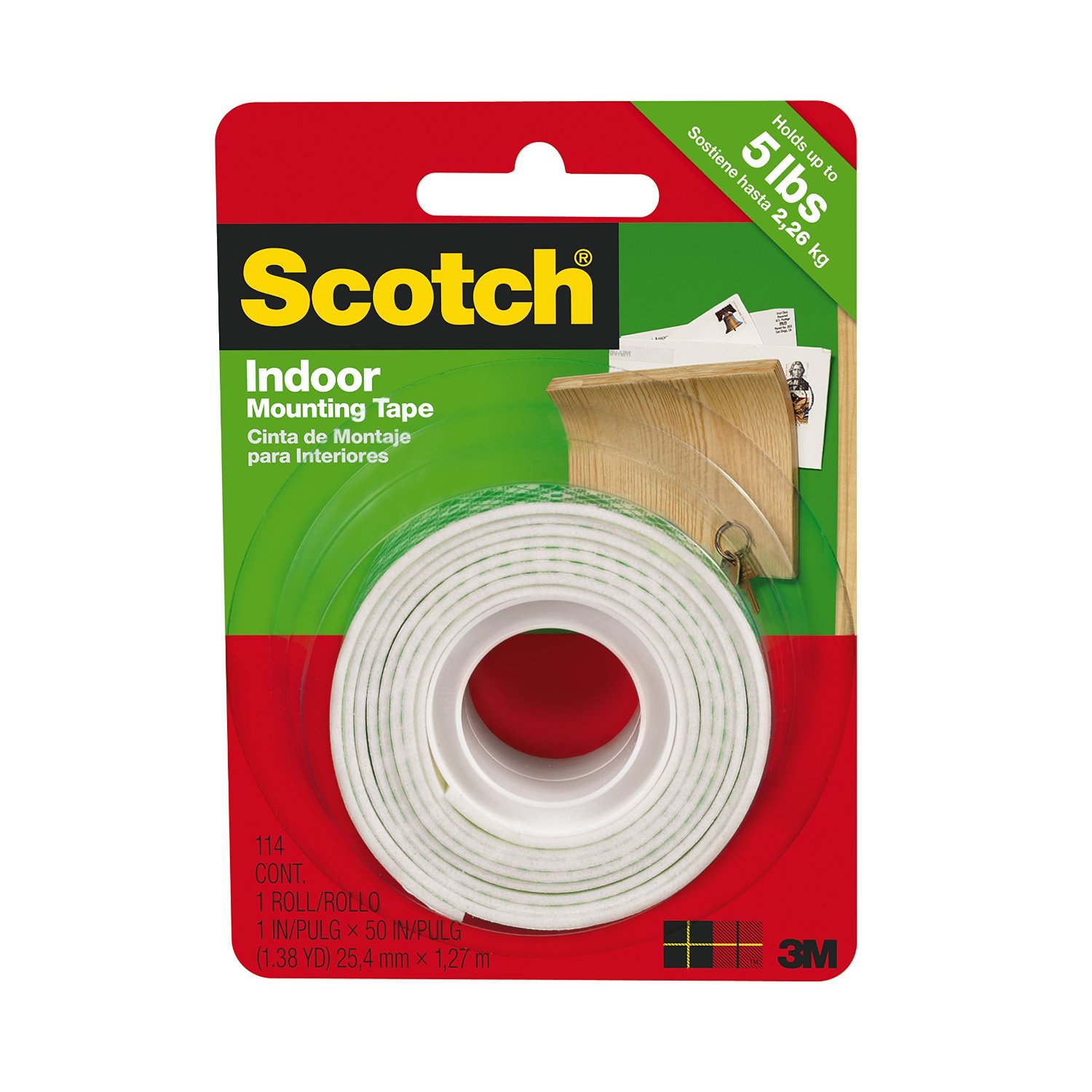

Use this double sided sticky tape to mount HDMI converter and Micca media player. Click on pic. Get from amazon. $2.77
Click YouTube to see all of this in action.
Remote needs 2 AAA batteries! (Not supplied in package from Amazon)

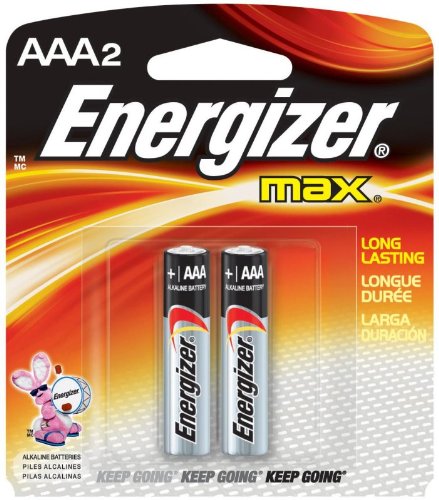

You'll need 2 AAA batteries for the Micca Remote. Amazon price: $2.81
Not used if your TV has an HDMI input. Most do now days... This illustration assumes that your TV does. THIS IS NOT THE POWER IN JACK!!!! IT'S OVER TO THE RIGHT!!
Shipping & Handling:
$14.21
Grand Total:
$116.63
SanDisk Cruzer Fit CZ33 32GB USB 2.0 Low-Profile Flash Drive- SDCZ33-032G-B35
Sold by: Digital Media Source
$14.49
Condition: New
AVUE Mini Converter HDMI to HDMI + Audio (SPDIF + L/R) Extractor Converter
Sold by: United Security Supply
$25.00
Mediabridge ULTRA Series HDMI Cable (6 Feet) - High-Speed Supports Ethernet, 3D and Audio Return [Newest Standard]
Sold by: Mediabridge Products, LLC Product question? Ask Seller
$8.99
Condition: New
Mediabridge ULTRA Series HDMI Cable (25 Feet) - High-Speed Supports Ethernet, 3D and Audio Return [Newest Standard]
Sold by: Mediabridge Products, LLC Product question? Ask Seller
$13.99
Condition: New
Micca Speck 1080p Full-HD Ultra Portable Digital Media Player For USB Drives and SD/SDHC Cards
Sold by: Micca Distributor
$39.95
Condition: New - Brand New
I ALREADY PURCHASED ONE OF THESE AND TRIED IT OUT... IT WORKS PERFECTLY!!!! THERE IS NO PROGRAMMING OR ANY KIND OF SET UP REQUIRED. IT'S ALL PLUG AND PLAY.
